GH40缩框型减速电机型号大全附尺寸图
GH40卧式斜齿轮减速机型号：CH40-1.5KW-100SB、CH40-1.5KW-120SB、CH40-1.5KW-140SB、CH40-1.5KW-160SB、CH40-1.5KW-180SB
CH40-2.2KW-40SB、CH40-2.2KW-50SB、CH40-2.2KW-60SB、CH40-2.2KW-70SB、CH40-2.2KW-80SB、CH40-2.2KW-90SB、CH40-2.2KW-100SB
CH40-3.7KW-15SB、CH40-3.7KW-20SB、CH40-3.7KW-25SB、CH40-3.7KW-30SB、CH40-3.7KW-40SB、CH40-3.7KW-50SB、CH40-3.7KW-60SB
GH40减速机匹配的电机功率：4.5KW 2.2KW 3.7KW
电机电压：可直流 可交流

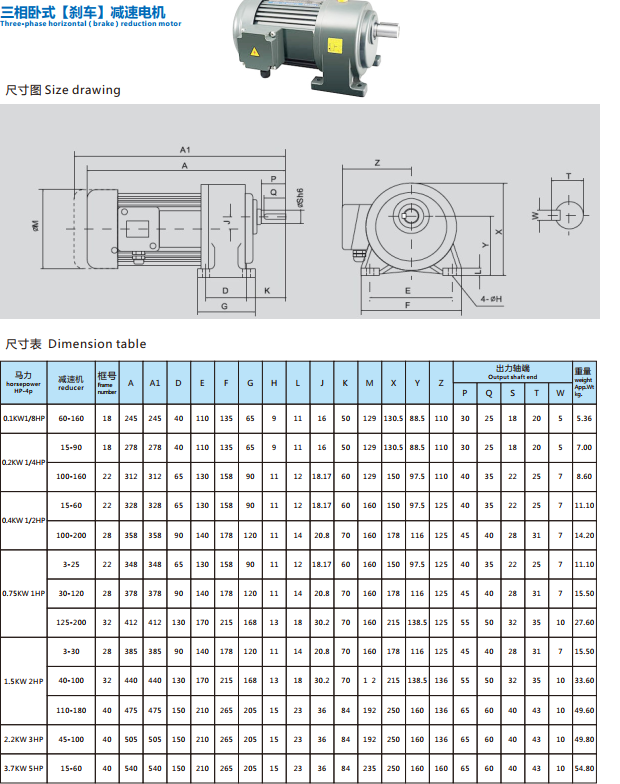

下面是CH40减速机的安装尺寸图，需要高清尺寸图或对型号有不了解的，可咨询客服或拨打18029026613
CH40减速机：http://www.ycmada.com/products/213.html
